High flexibility and low weight. Excellent abrasion resistance. The waterproof feature of the cover is particularly suitable for wet and saline environments with extreme temperature changes.

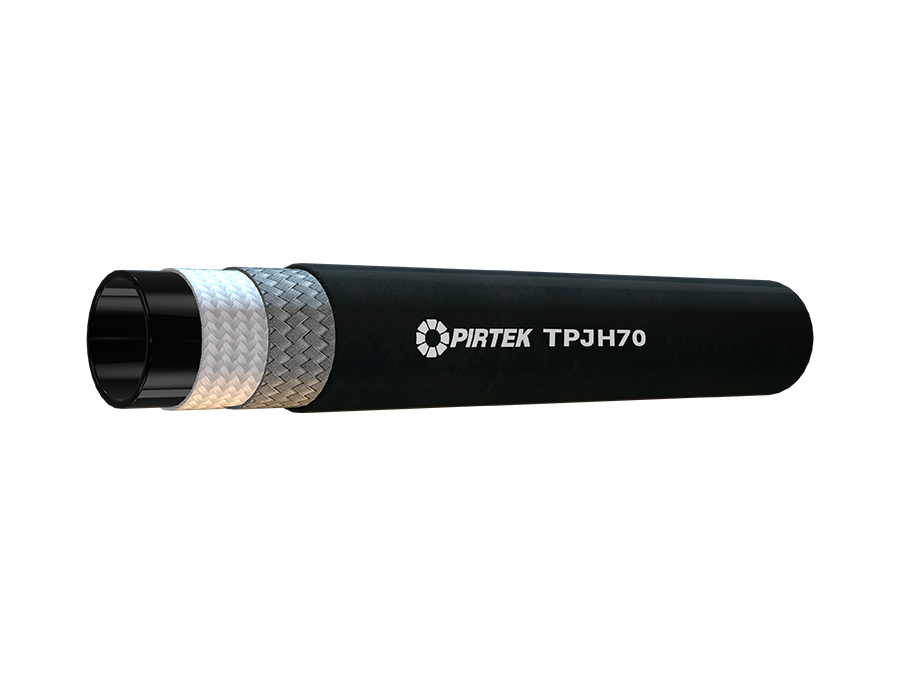

| Product code | TPJH70 |
|---|---|
| Type | High-pressure thermoplastic jacking hose |
| Standards/Approvals | High-pressure jacking service |
| Category | Hydraulic > Hose > Thermoplastic > Jacking |
| Inner Liner | Thermoplastic inner tube |
|---|---|
| Outer Cover | Abrasion-resistant thermoplastic cover |
| Reinforcement | Textile/wire braid |
| Application | High-pressure hydraulic jacking applications. |
| Temperature range | Refer to current product specification |
|---|---|
| Safety factor | 4:1 |
| Caution | Use only compatible jacking couplings and assembly procedures. |
| Item code | ID (inch) | ID (mm) | Max WP (bar) | Max WP (psi) | Min bend radius (mm) |
|---|---|---|---|---|---|
| TPJH70-04 | 1/4 | 6.4 | 700 | 10153 | 40 |
| Hose size | Crimp |
|---|---|
| -04 | K |
