Flexible at low temperatures. Excellent bend radius. Compact R7 outside dimensions. Low elongation. Absorbs shock loads and damaging pressure spikes through controlled expansion. Suitable for wet and saline environments where there are extreme temperature changes.

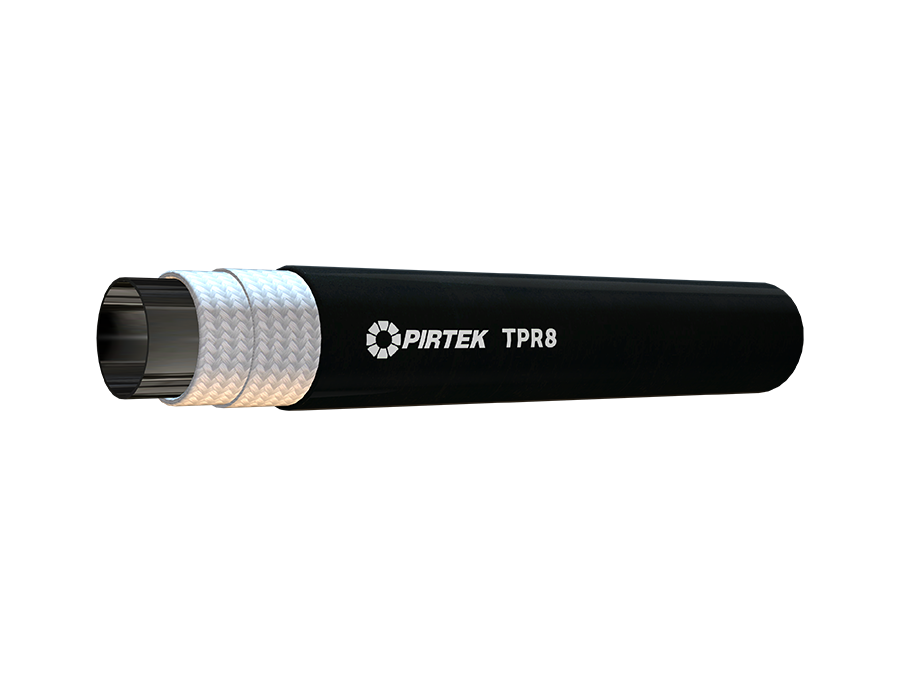

| Product code | TPR8 |
|---|---|
| Type | High-pressure thermoplastic hose |
| Standards/Approvals | SAE 100R8 performance with R7 dimensions |
| Category | Hydraulic > Hose > Thermoplastic > General Purpose |
| Inner Liner | Smooth seamless thermoplastic polyamide |
|---|---|
| Outer Cover | Black perforated anti-abrasion polyurethane, UV stabilized |
| Reinforcement | Two layers of polyester braid |
| Application | High-pressure hydraulic systems, polyols, solvents and compatible gases; tank-to-tank oxygen and breathing-air mixtures only. |
| Temperature range | -40°C to +100°C; maximum +70°C with air, water, water-based or fire-resistant fluids |
|---|---|
| Safety factor | 4:1 |
| Vacuum rating | -13.5 psi (27.5 in Hg) |
| Caution | Check chemical compatibility before service. |
| Item code | ID (inch) | ID (mm) | OD avg (mm) | Max WP (bar) | Max WP (psi) | Min bend radius (mm) | Weight (kg/m) | Notes |
|---|---|---|---|---|---|---|---|---|
| TPR8-02 | 1/8 | 3.2 | 7.1 | 420 | 6092 | 30 | 0.031 | |
| TPR8-03 | 3/16 | 4.8 | 10 | 350 | 5076 | 35 | 0.083 | |
| TPR8-04 | 1/4 | 6.4 | 11.8 | 350 | 5076 | 50 | 0.088 | |
| TPR8-05 | 5/16 | 8 | 325 | 4714 | Available upon request; index listing | |||
| TPR8-06 | 3/8 | 9.7 | 16 | 280 | 4061 | 70 | 0.14 | |
| TPR8-08 | 1/2 | 13 | 20.3 | 245 | 3553 | 95 | 0.341 |
| Hose size | Crimp |
|---|---|
| -02 | TP |
| -03 | T |
| -04 | T |
| -05 | T |
| -06 | T |
| -08 | T |
