Ideal for engine & air brake. Permeable cover allows safe escape of entrapped air when used to conduct high pressure air. High temperature resistance.

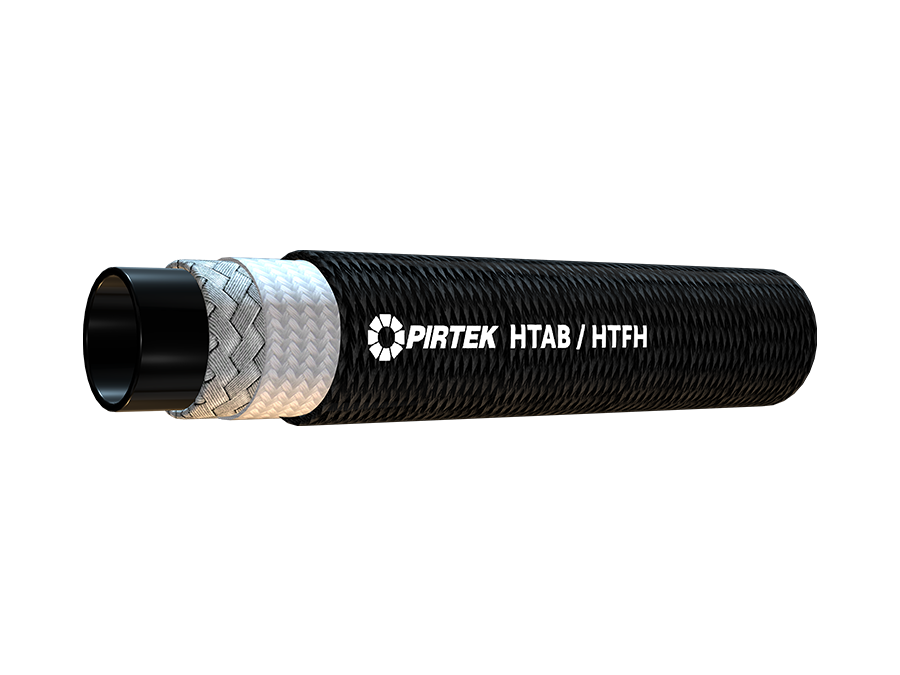

| Product code | HTAB / HTFH |
|---|---|
| Type | High-temperature brake and flex hose — SAE J1402 AII |
| Standards/Approvals | SAE J1402 AII (-04 to -12); DOT FMVSS 106 (-04 to -12); consult PIRTEK for specific industry approvals |
| Category | Hydraulic > Hose > Rubber > Braided |
| Inner Liner | Seamless CPE/AQP rubber; oil resistant |
|---|---|
| Outer Cover | Black synthetic rubber with black polyester textile outer braid; resistant to abrasion, oils, ozone and weathering |
| Reinforcement | One polyester braid and one braid of high-tensile steel wire |
| Application | Low- to medium-pressure hose for high-temperature hydraulic and transmission oils, mineral and vegetable oils, aqueous emulsions, diesel, B20, petrol, E10, lubricating oils, coolants, water, air and inert gases. Ideal for engine and air-brake service. |
| Temperature range | Air: 0°C to +121°C;; Ambient: -40°C to +121°C;; E10 & B20: -40°C to +100°C;; Hydraulic / transmission oil & diesel: -40°C to +149°C;; Water / water-based fluid / glycol: 0°C to +82°C |
|---|---|
| Safety factor | 4:1 |
| Vacuum rating | -0.9 bar (-04 to -10); -0.6 bar (-12); -0.5 bar (-16 to -20); -0.3 bar (-24) |
| Feature | Permeable cover allows the safe escape of entrapped air during high-pressure air service. for -24. |
|---|
| Item code | ID (inch) | ID (mm) | OD avg (mm) | Max WP (bar) | Max WP (psi) | Min bend radius (mm) | Weight (kg/m) | Vacuum rating (bar) |
|---|---|---|---|---|---|---|---|---|
| HTAB-04 | 3/16 | 4.9 | 13.7 | 138 | 2002 | 19 | 0.19 | -0.9 |
| HTAB-05 | 1/4 | 6.4 | 15.7 | 103 | 1494 | 25 | 0.24 | -0.9 |
| HTAB-06 | 5/16 | 7.9 | 17.7 | 103 | 1494 | 31 | 0.28 | -0.9 |
| HTAB-08 | 13/32 | 10.4 | 20.1 | 86 | 1248 | 44 | 0.33 | -0.9 |
| HTAB-10 | 1/2 | 12.7 | 24 | 86 | 1248 | 57 | 0.5 | -0.9 |
| HTAB-12 | 5/8 | 15.9 | 27.9 | 52 | 754 | 69 | 0.58 | -0.6 |
| HTFH-16 | 7/8 | 22.4 | 32.3 | 28 | 406 | 88 | 0.55 | -0.5 |
| HTFH-20 | 1-1/8 | 28.7 | 38.9 | 21 | 305 | 114 | 0.68 | -0.5 |
| HTFH-24 | 1-3/8 | 35.1 | 46 | 17 | 247 | 139 | 0.85 | -0.3 |
| Hose size | Crimp | Field Attachable |
|---|---|---|
| -04 | R | A |
| -05 | R | A |
| -06 | R | A |
| -08 | R | A |
| -10 | R | A |
| -12 | R | A |
| -16 | R | A |
| -20 | R | A |
| -24 | R | A |
