MSHA flame resistance. High temperature resistance. Sizes -24 & -32 come with outer cover pin-pricked
| Product code | HT2 |
|---|---|

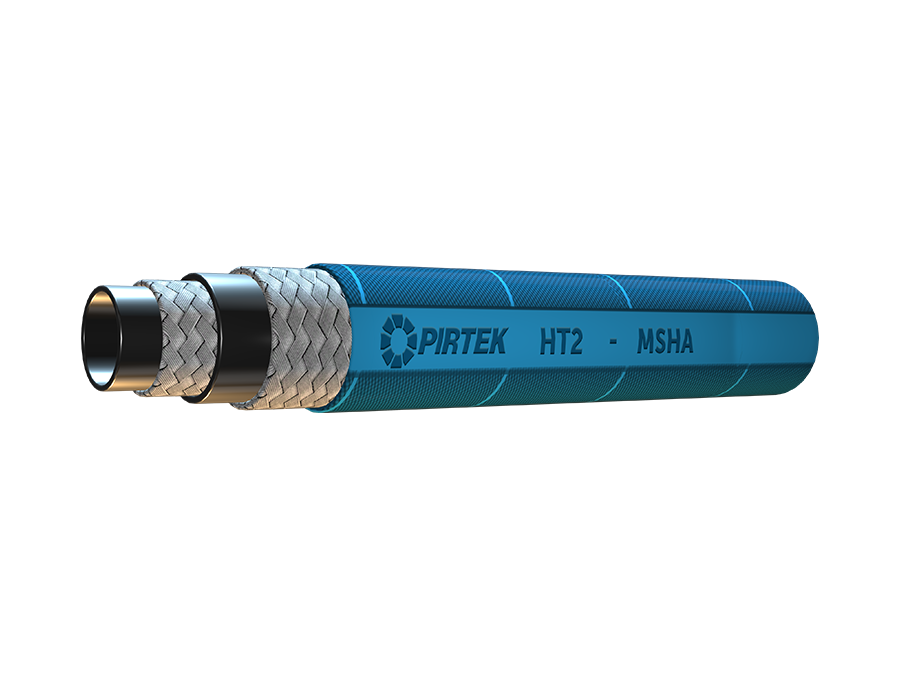

| Type | High-temperature two-wire braid hydraulic hose |
| Standards/Approvals | Tested in accordance with SAE 100R2AT and EN853 1SN; MSHA approval |
| Category | Hydraulic > Hose > Rubber > Braided |
| Inner Liner | High-temperature synthetic rubber resistant to oil |
|---|---|
| Outer Cover | Blue synthetic rubber resistant to abrasion, oils, ozone and weathering |
| Reinforcement | Two braids of high-tensile steel wire |
| Application | High-temperature hose for mineral and biological hydraulic oils, polyglycol-based oils, water-oil emulsions, water and compressed air. |
| Temperature range | Hydraulic oils: -40°C to +135°C; occasional peaks to +150°C;; Polyglycol / emulsions / water: maximum +85°C;; Air: maximum +135°C with oil mist; not suitable for dry air |
|---|---|
| Safety factor | 4:1 |
| Vacuum rating | N/A |
| Caution | Pin-prick the cover for air service above 17 bar. HT2-24 and HT2-32 are supplied pin-pricked. |
| Feature | high-temperature resistance |
|---|
| Item code | ID (inch) | ID (mm) | OD avg (mm) | Max WP (bar) | Max WP (psi) | Min bend radius (mm) | Weight (kg/m) | Notes |
|---|---|---|---|---|---|---|---|---|
| HT2-20 | 1-1/4 | 31.8 | 47.3 | 125 | 1,813 | 420 | 2.02 | Standard product; burst pressure 500 bar |
| HT2-24 | 1-1/2 | 38.1 | 53.7 | 90 | 1,305 | 500 | 2.23 | Standard product; burst pressure 360 bar; supplied pin-pricked |
| HT2-32 | 2 | 50.8 | 66.7 | 80 | 1,160 | 630 | 2.85 | Standard product; burst pressure 320 bar; supplied pin-pricked |
| Hose size | Crimp |
|---|---|
| HT2-20 | J |
| HT2-24 | J |
| HT2-32 | 3J |
