MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static). 1/2 the bend radius compared to conventional R13/R15 hoses. Greater flexibility for ease of routing and installation.
| Product code | PE4/6 PIRTEK ENDURANCE SERIES |
|---|---|
| Type | 350 / 420 bar compact spiral hose — PIRTEK Endurance Series |
| Standards/Approvals | 350 bar: SAE 100R13, ISO 3862 R13, EN856 R13, AS 3791 R13, ISO 18752 CC; 420 bar: SAE 100R15, ISO 3862 R15, ISO 18752 CC |
| Category | Hydraulic > Hose > Rubber > Multi-Spiral |
| Inner Liner | Black seamless synthetic rubber; oil resistant |
|---|---|
| Outer Cover | High-abrasion-resistant black synthetic rubber resistant to oils, ozone and weathering |

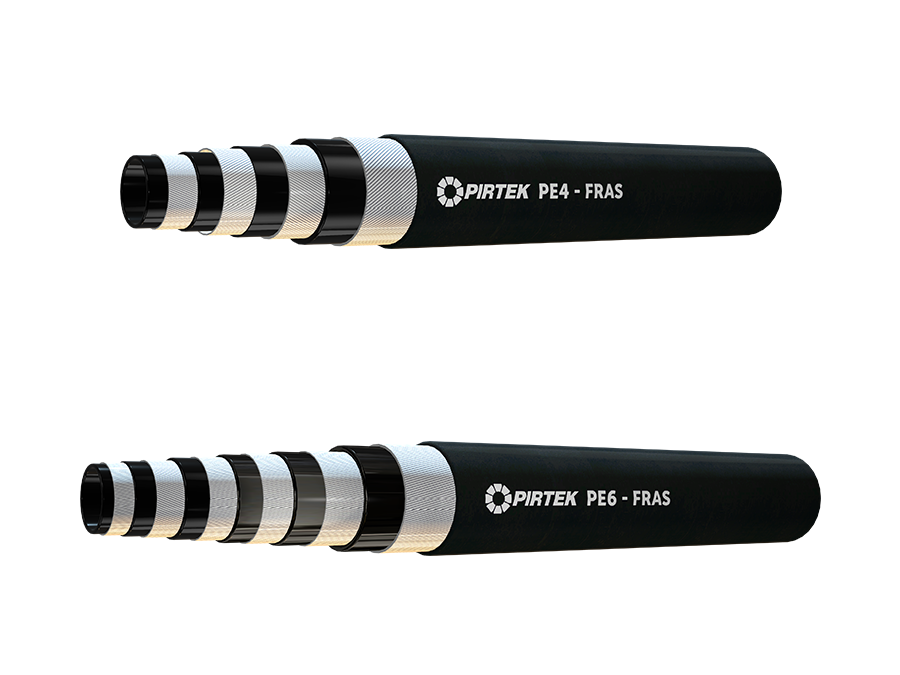

| Reinforcement | Four spirals for PE435 and PE442; six spirals for PE642 |
| Application | Extremely high-pressure hose for mineral and vegetable oils, aqueous emulsions, water, air and inert gases. Pin-prick the cover for air or inert gas above 17 bar. |
| Temperature range | Ambient: -40°C to +70°C;; Mineral / vegetable oils: -40°C to +121°C; +125°C discontinuous;; Rated range: -40°C to +70°C;; Water & air: 0°C to +70°C;; Water-based fluids: -40°C to +70°C |
|---|---|
| Safety factor | 4:1 |
| Vacuum rating | N/A |
| Feature | Greater flexibility for routing and installation; avoid prolonged water-based-fluid service above 70°C. |
|---|
| Item code | ID (inch) | ID (mm) | OD avg (mm) | Max WP (bar) | Max WP (psi) | Min bend radius (mm) | Weight (kg/m) | Notes |
|---|---|---|---|---|---|---|---|---|
| PE435-20 | 1-1/4 | 31.8 | 44.8 | 350 | 5076 | 210 | 2.4 | Four-wire spiral |
| PE442-06 | 3/8 | 9.5 | 20 | 420 | 6092 | 65 | 0.65 | Four-wire spiral |
| PE442-08 | 1/2 | 12.7 | 23 | 420 | 6092 | 90 | 0.85 | Four-wire spiral |
| PE442-12 | 3/4 | 19.1 | 30.6 | 420 | 6092 | 120 | 1.5 | Four-wire spiral |
| PE442-16 | 1 | 25.4 | 37.8 | 420 | 6092 | 150 | 2 | Four-wire spiral |
| PE642-20 | 1-1/4 | 31.8 | 49.3 | 420 | 6092 | 300 | 3.55 | Six-wire spiral |
| PE642-24 | 1-1/2 | 38.1 | 57 | 420 | 6092 | 350 | 4.65 | Six-wire spiral |
| Hose / version | Crimp | Crimp Interlock |
|---|---|---|
| PE435-20 | H / J | |
| PE442-06 | 2J / H / K | |
| PE442-06 MK II | 2J / H / K | |
| PE442-08 MK II | 2J / H / K | |
| PE442-12 MK II | 2J / H | |
| PE442-16 MK II | 2J | IF13 |
| PE642-20 | H | |
| PE642-24 | H |
