MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static). Long life fatigue resistance

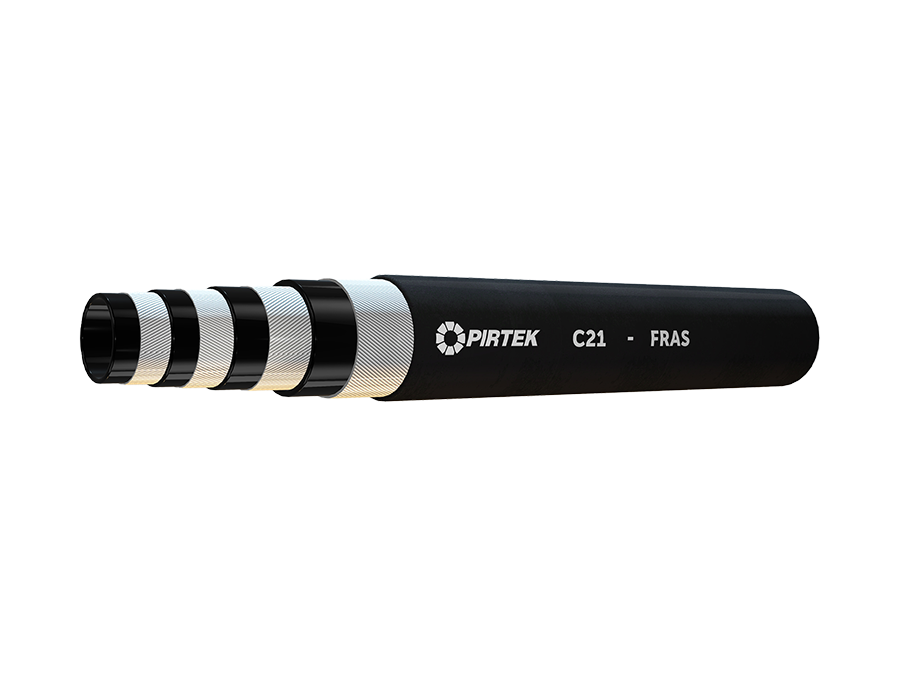

| Product code | C21 |
|---|---|
| Type | 210 bar multi-spiral isobaric hose |
| Standards/Approvals | SAE 100R12; EN856 4SP/R12; AS 3791 100R12; ISO 3862 4SP/R12; ISO 18752 CC; JIS K6349-3; MSHA flame resistance; FRAS |
| Category | Hydraulic > Hose > Rubber > Multi-Spiral |
| Inner Liner | Seamless synthetic rubber; oil resistant |
|---|---|
| Outer Cover | Black synthetic rubber resistant to abrasion, oils, ozone and weathering |
| Reinforcement | Four spirals of high-tensile steel wire |
| Application | Isobaric hose for mineral and vegetable hydraulic oils, aqueous emulsions, water, air and inert gases. Pin-prick the cover for air or gas above 17 bar. |
| Temperature range | Ambient: -40°C to +70°C;; Mineral oil: -40°C to +120°C;; Rated range: -40°C to +70°C;; Water: 0°C to +70°C;; Water-based fluids: -40°C to +70°C |
|---|---|
| Safety factor | 4:1 |
| Vacuum rating | -0.2 bar |
| Caution | Prolonged use with water or water-based fluids above 70°C may allow wire corrosion through the inner liner. |
| Feature | long-life fatigue resistance |
|---|
| Item code | ID (inch) | ID (mm) | OD avg (mm) | Max WP (bar) | Max WP (psi) | Min bend radius (mm) | Weight (kg/m) | Notes |
|---|---|---|---|---|---|---|---|---|
| C21-32 | 2 | 50.8 | 66.7 | 210 | 3046 | 500 | 4.2 | Four-spiral construction |
| Hose size | Crimp |
|---|---|
| -32 | 3J |
