MSHA flame resistance approved. Compatible with Caterpillar® reusable fittings.
| Product code | R13C |
|---|---|
| Type | Very-high-pressure multi-spiral hose — SAE 100R13 |
| Standards/Approvals | SAE 100R13; MSHA flame resistance |
| Category | Hydraulic > Hose > Rubber > Multi-Spiral |
| Inner Liner | Fabric-reinforced synthetic rubber; oil resistant |
|---|---|
| Outer Cover | Black synthetic rubber resistant to abrasion, oils, ozone and weathering |

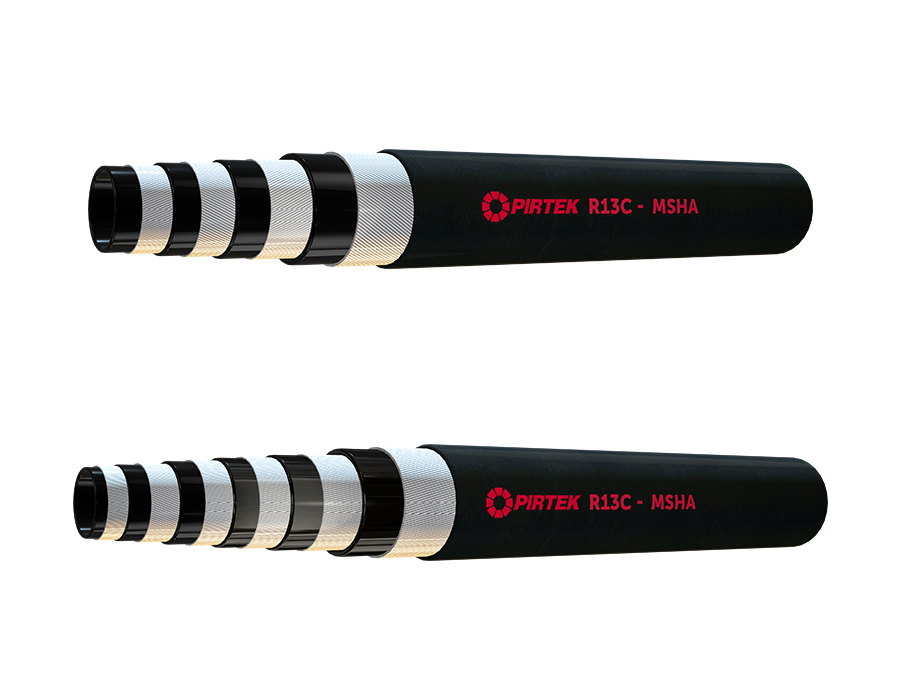

| Reinforcement | Four spirals (-12 to -16) or six spirals (-20 to -24) of high-tensile steel wire separated by synthetic-rubber layers |
| Application | Very-high-pressure hose for glycol, mineral oils, fuels and hydrocarbons where high pulsating pressure, flexibility and high-temperature resistance are required. |
| Temperature range | Mineral oil: -40°C to +121°C;; Rated range: -40°C to +121°C |
|---|---|
| Safety factor | 4:1 |
| Vacuum rating | N/A |
| Feature | Compatible with Caterpillar reusable fittings |
|---|
| Item code | ID (inch) | ID (mm) | OD avg (mm) | Max WP (bar) | Max WP (psi) | Min bend radius (mm) | Weight (kg/m) | Notes |
|---|---|---|---|---|---|---|---|---|
| R13C-12 | 3/4 | 19.1 | 32.1 | 345 | 5004 | 141 | 1.75 | Four-wire spiral |
| R13C-16 | 1 | 25.4 | 38.7 | 345 | 5004 | 153 | 2.3 | Four-wire spiral |
| R13C-20 | 1-1/4 | 31.8 | 49.8 | 345 | 5004 | 210 | 3.7 | Six-wire spiral |
| R13C-24 | 1-1/2 | 38.1 | 57.3 | 345 | 5004 | 254 | 4.65 | Six-wire spiral |
| Hose size | Crimp Interlock |
|---|---|
| -12 | |
| -16 | |
| -20 | |
| -24 | IF13 |
